SMA cuibheoir
Is iad na cuibheoirí RF Comhaiseach SMA an raon iarratais is leithne agus an éagsúlacht is mó i measc gach sraith adapter . Tá thart ar na céadta cineál roghnach . Is féidir lena mhinicíocht oibriúcháin uasmhéid teacht suas le 26 . 5 GHz {.}} i measc na dtáirgí atá deartha agus forbraíodh iad de réir na dtrí cinn de 6G, de 6G, de réir mar a dhéantar iad.
Cur síos
Tabhairt isteach táirge
Is iad na cuibheoirí RF Comhaiseach SMA an raon iarratais is leithne agus an éagsúlacht is mó i measc gach sraith adapter . Tá thart ar na céadta cineál roghnach . Is féidir lena mhinicíocht oibriúcháin uasmhéid teacht suas le 26 . 5 GHz {.}} i measc na dtáirgí atá deartha agus forbraíodh iad de réir na dtrí cinn de 6G, de 6G, de réir mar a dhéantar iad.
Ábhar táirge
The outer conductor of the SMA connector's body is usually made of metal materials such as brass or stainless steel. It plays a crucial role in shielding and signal transmission. Its cylindrical structure surrounds the inner conductor and dielectric, providing a low-resistance path for the return current of the electromagnetic signal, thus ensuring the stability and integrity of the signal tarchur .
Stíl an Chomhlachta Táirge
Tá cónaisc SMA ar fáil i bhfoirmeacha coirp éagsúla, lena n -áirítear cineál díreach, cineál dronuillinn, 4- poll flange mount, cineál mount bulkhead, agus folús -aerdhíonach an bhulc -cheann de chineál .
Ceisteanna Coitianta Soláthair
Sonraí sonraíochta táirgí
|
Cumraíocht |
|
|
Cónascaire 1 Cineál |
SM |
|
Ceanglóir 1 bacainní |
50 óm |
|
Ceanglóir 1 Polaraíocht |
Caighdeánach |
|
Cineál cónascaire 2 |
SMA/GPPO/GPO/2.4mm/2.92mm/3.5mm/N/TNC/BNC/SSMC/MMCX/IPEX/SSMA |
|
Ceanglóir 2 bacainní |
50 óm |
|
Ceanglóir 2 Polaraíocht |
Caighdeánach |
|
Modh mount cónascaire |
Gan aon |
|
Stíl choirp adapter |
Flange díreach/4 poll/bulkhead mount/dronuillinn/ |
|
Faisnéis faoi Ábhair |
|
|
Lár -theagmháil |
Ciúb Óir plátáilte |
|
Teagmháil sheachtrach |
Prás Óir plátáilte / cruach dhosmálta |
|
Tathag |
Prás Óir plátáilte / cruach dhosmálta |
|
Tréleictreach |
PEI/PTFE/Glass |
|
Sonraí comhshaoil |
|
|
Fadteocht |
Céim {-55 go +165 Céim |
|
2011/65/AE (ROHS) |
Comhlíontach |
Cineálacha Adapter SMA
|
Cuibheoir RF SMA |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|

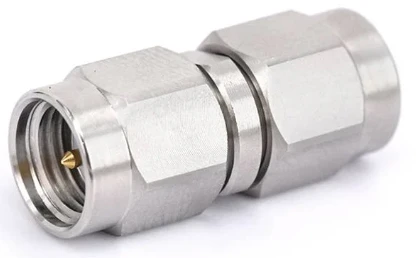

Fr 1- sma-jjs |
|
|
Dc -18 GHz |
1.15 |
Fireann fireann go fireann sma |
|

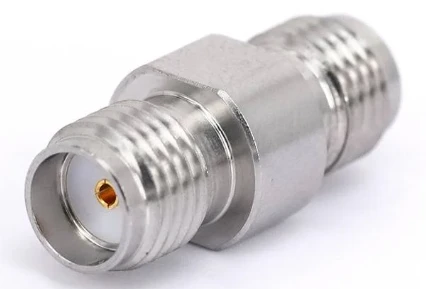

Fr 1- sma-kks |
|
|
Dc -18 GHz |
1.15 |

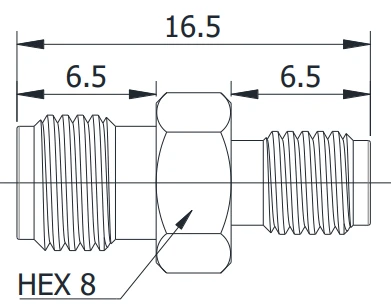

SMA Mná go SMA Mná |
|
Fr 1- sma-jks |
|
|
Dc -18 GHz |
1.15 |
Fireann fireann go sma baineann |
|

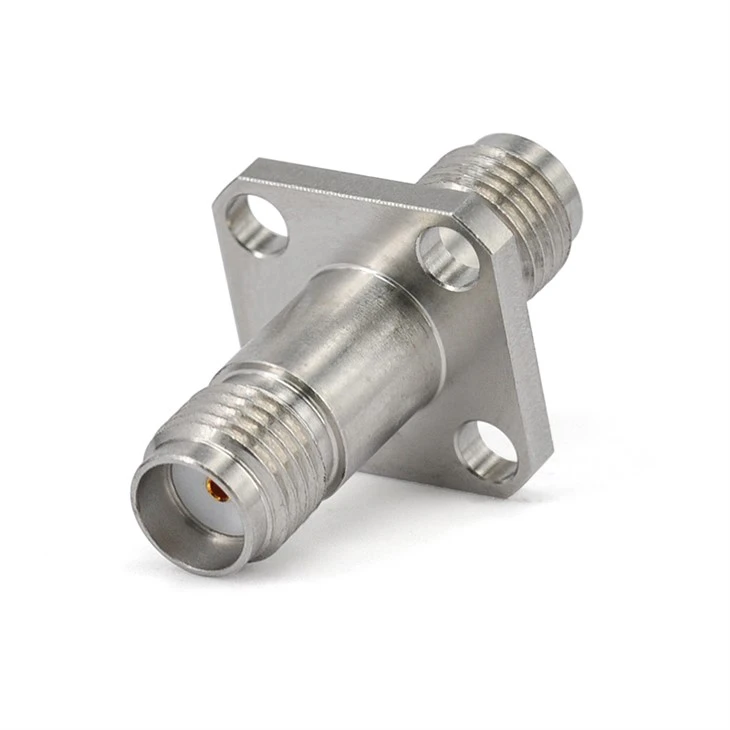

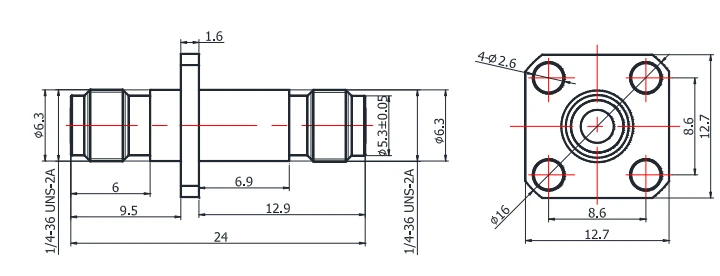

Fr 1- sma-kfkg {-1 |
|
|
Dc -18 GHz |
1.15 |

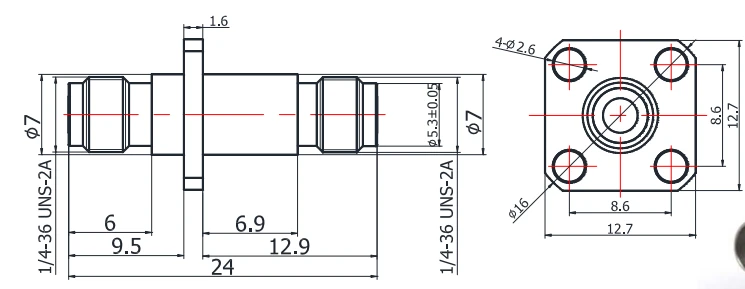

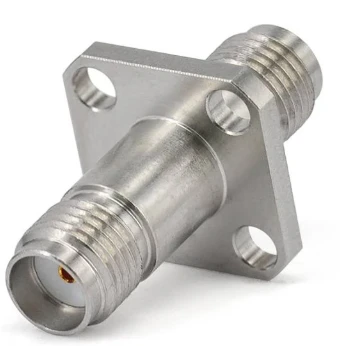

SMA Mná go SMA baineann le flange 4 pholl |
|
Fr 1- sma-kfkg |
|
|
Dc -26.5 GHz |
1.15 |
SMA Mná go SMA baineann le flange 4 pholl |
|
Fr 1- sma-kykg -1 |
|
|
Dc -26.5 GHz |
1.25 |

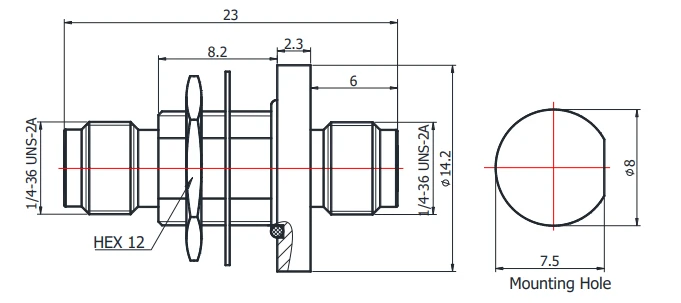

SMA Mná go SMA Mná le Mount Bulkhead |
|

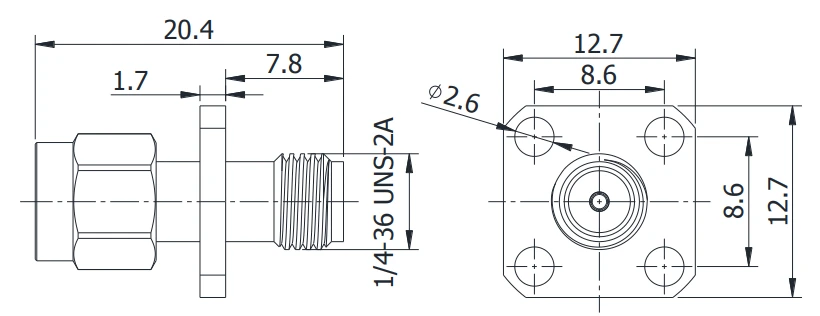

Fr 1- sma-jfkg |
|
|
Dc -18 GHz |
1.20 |
Fireann fireann chun bean a smam le flange 4 pholl |
|
Fr 1- sma-jwjs -18 g |
|
|
Dc -18 GHz |
1.25 |
Fireann fireann chun fireann a bheith leis an uillinn cheart |
|
Fr 1- sma-kwks {-18 g |
|
|
Dc -18 GHz |
1.25 |
SMA Mná go SMA Mná le huillinn cheart |
|
Fr 1- sma-jwks {-18 g |
|
|
Dc -18 GHz |
1.25 |
Fireann fireann chun bean a sma le dronuillinn cheart |
|

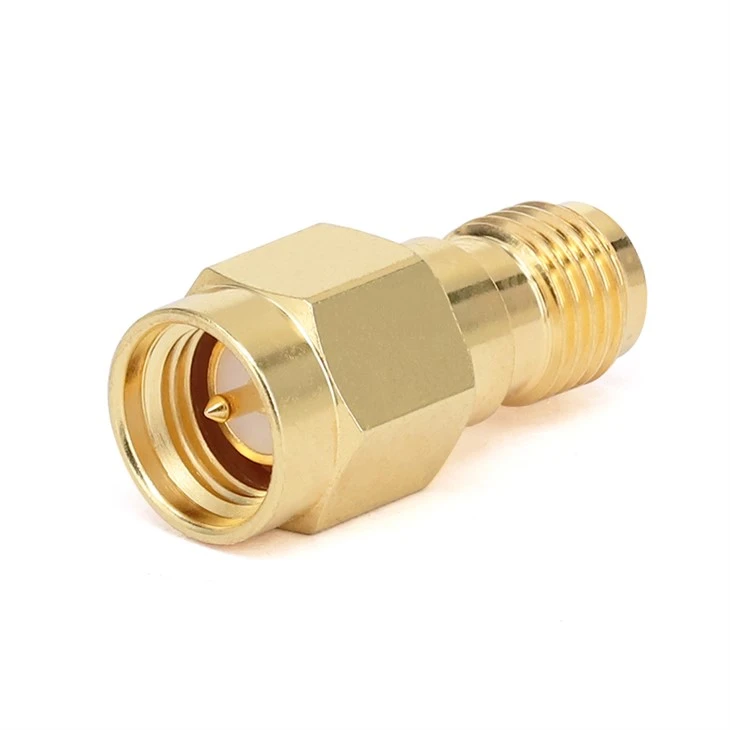

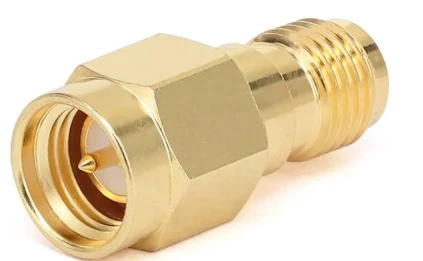

Fr 1- sma-jk |
|
|
Dc -18 GHz |
1.25 |
Fireann fireann go sma baineann |
|
Fr 1- sma-kk-e |
|
|
Dc -18 GHz |
1.25 |
SMA Mná go SMA Mná |
|
FR 1- SMA-KK1 |
|
|
Dc -18 GHz |
1.25 |
SMA Mná go SMA Mná |
|

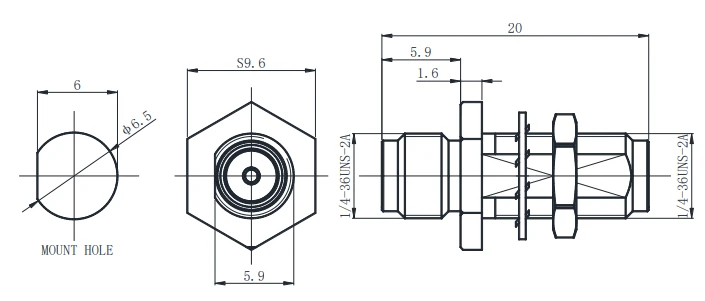

FR 1- SMA-KYK1 |
|
|
Dc -18 GHz |
1.25 |

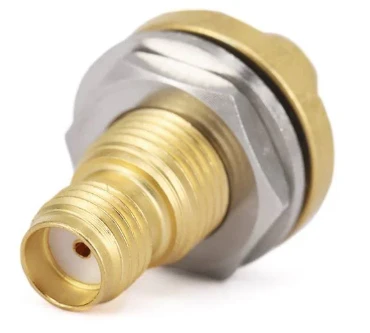

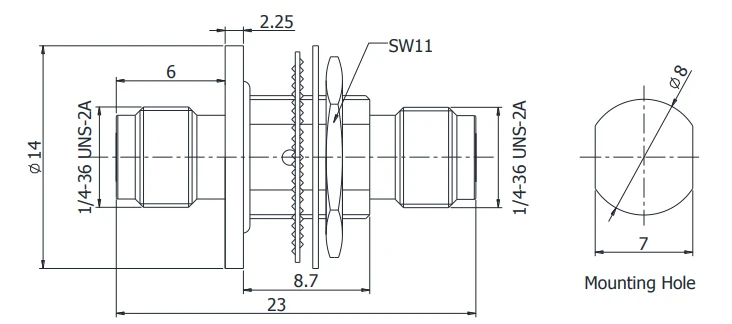

SMA Mná go SMA Mná le Mount Bulkhead |
|
Fr 1- Smam-kyk |
|
|
Dc -18 GHz |
1.35 |
SMA Mná go SMA baineann le mount bulkhead agus déine i bhfolús |
|
Fr 1- qsma/sma-jks |
|
|
Dc -18 GHz |
1.25 |
Fireann tapaidh smam go sma baineann |
|

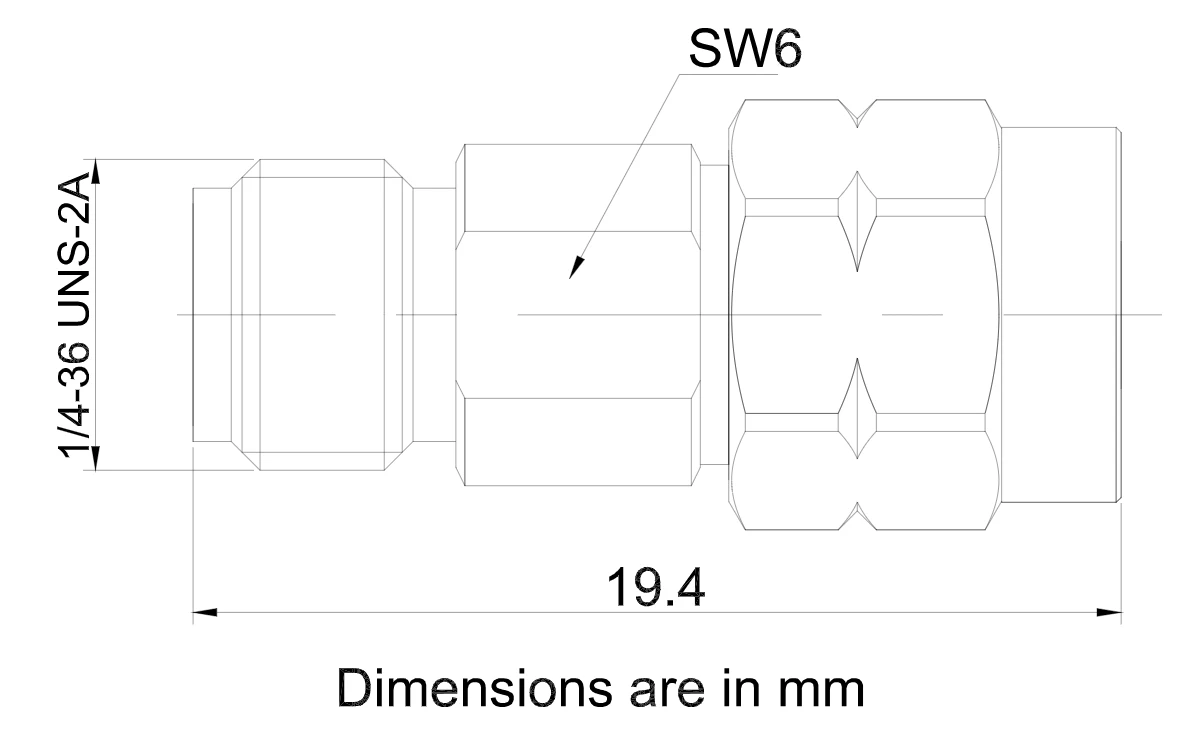

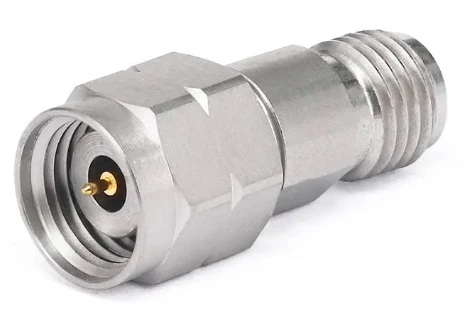

SMA go cuibheoir RF 2.4mm |
|||||
|
Scrúch |
Léaráid |
Fiach |
VSWR |
Tuairisc Cur síos |
|
|

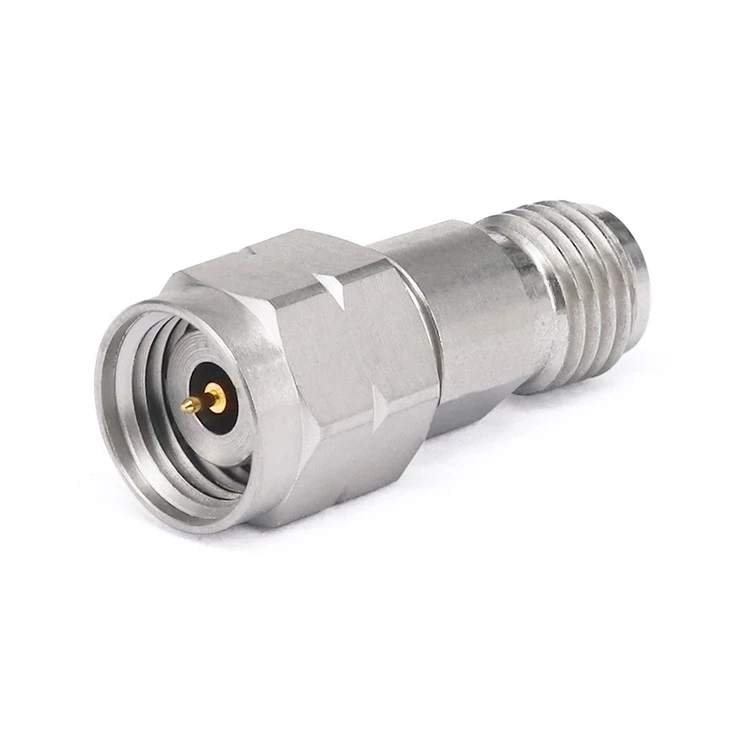

Fr 1- sma/2.4- kjs |
|
|
Dc -26.5 GHz |
1.15 |
SMA baineann go 2.4mm fireann |
|
SMA go 2.92mmRF cuibheoir |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|

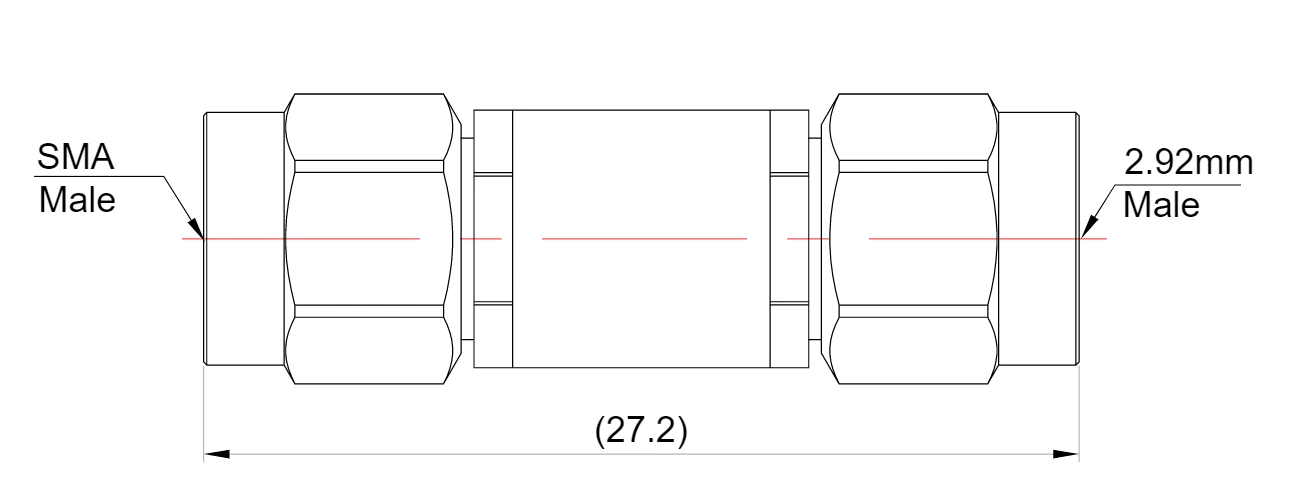

Fr 1- sma/2.92- jjs |
|
|
Dc -18 GHz |
1.15 |
Fireann fireann go 2.92mm fireann |
|
Fr 1- sma/2.92- kks |
|
|
Dc -18 GHz |
1.15 |

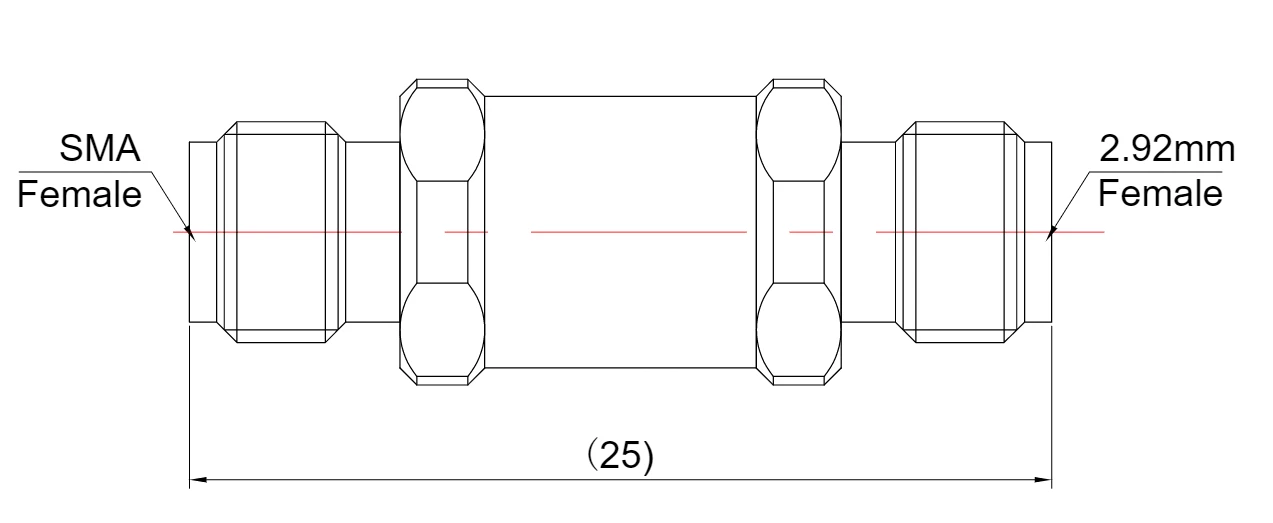

SMA baineann go 2.92mm baineann |
|

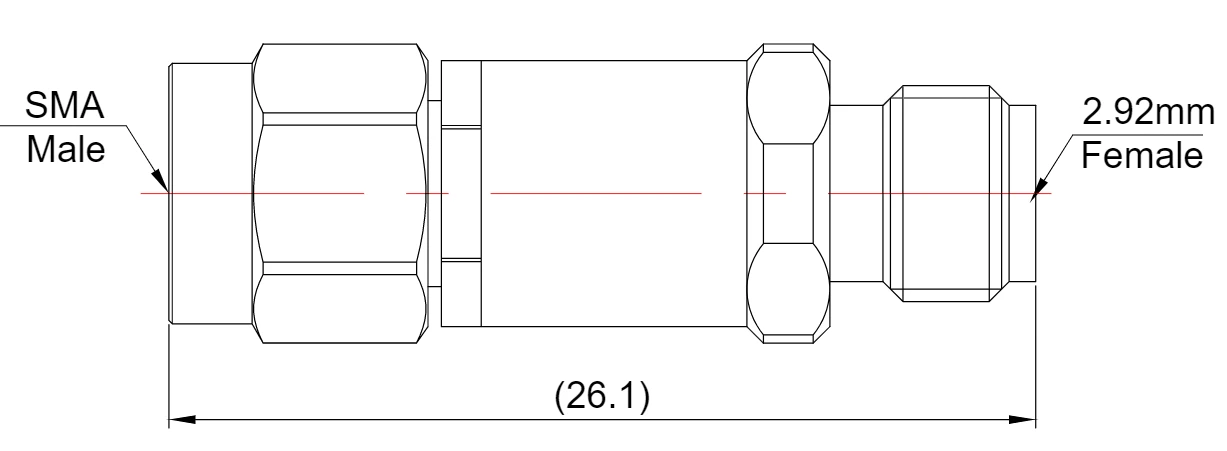

Fr 1- sma/2.92- jks |
|
|
Dc -18 GHz |
1.15 |
Fireann fireann go 2.92mm baineann |
|

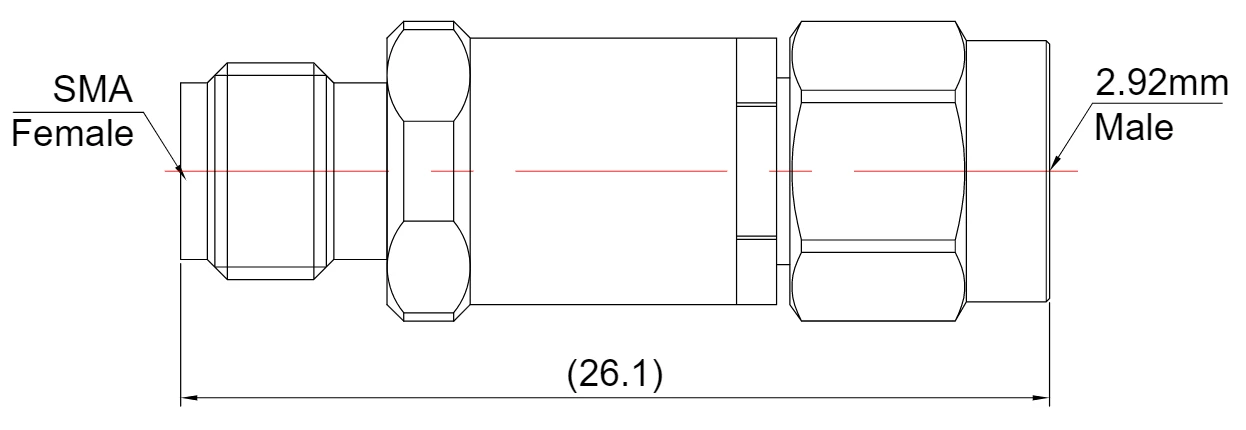

Fr 1- sma/2.92- kjs |
|
|
Dc -18 GHz |
1.15 |
SMA baineann go 2.92mm fireann |
|

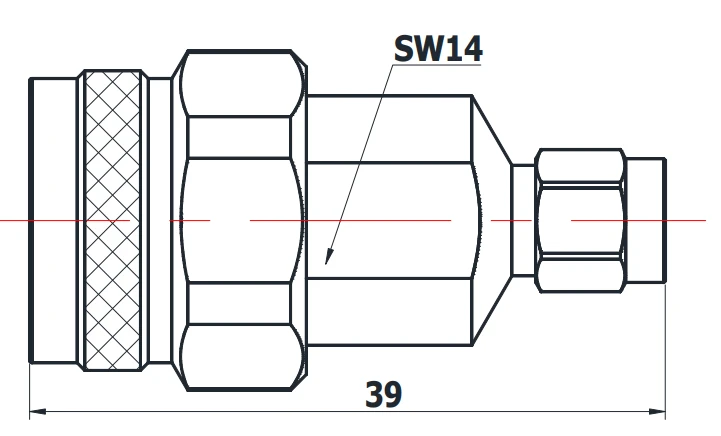

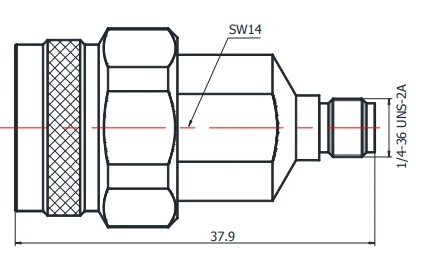

Cuibheoir sma go n rf |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
Fr 1- n/sma-jjs |
|
|
Dc -18 GHz |
1.15 |
N fireann a fhireann |
|
Fr 1- n/sma-kks |
|
|
Dc -18 GHz |
1.15 |
N baineann le bean a smam |
|
Fr 1- n/sma-jks |
|
|
Dc -18 GHz |
1.15 |
N fireann a mhná |
|
Fr 1- n/sma-kjs |
|
|
Dc -18 GHz |
1.15 |
N baineann le fireann sma |
|
Fr 1- n/sma-kykg |
|
|
Dc -18 GHz |
1.15 |

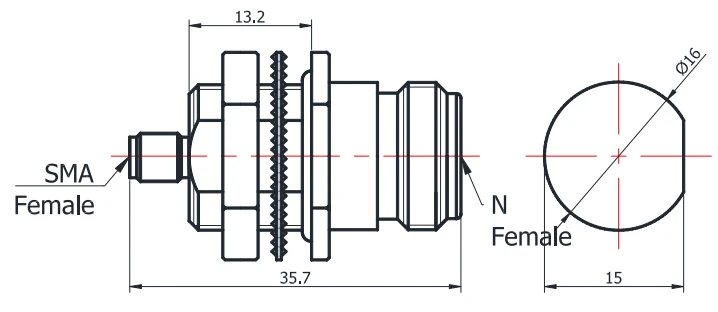

N baineann le bean a smam le mount bulkhead |
|

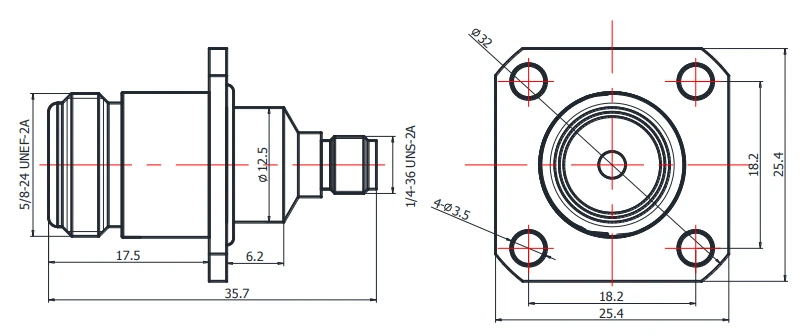

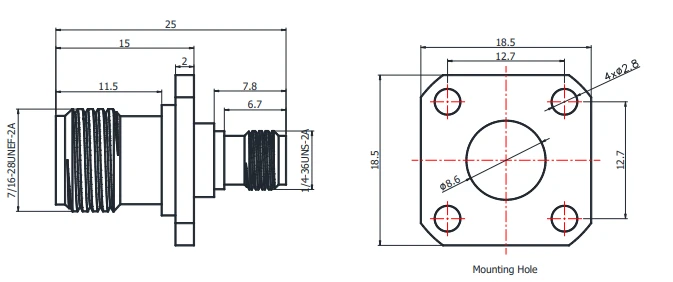

Fr 1- n/sm-kfkg |
|
|
Dc -18 GHz |
1.15 |
N baineann le bean le flange 4 pholl |
|

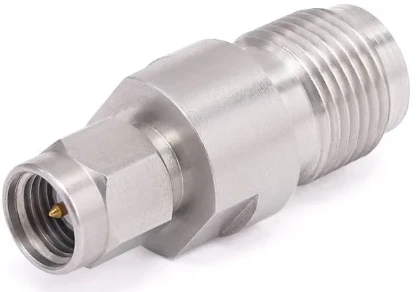

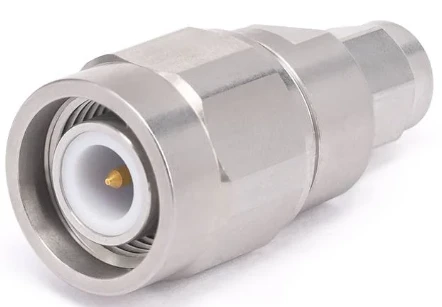

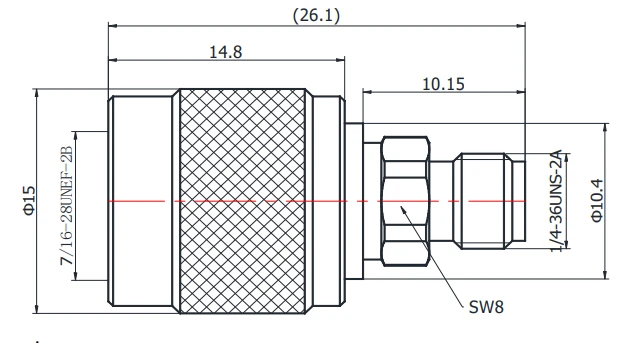

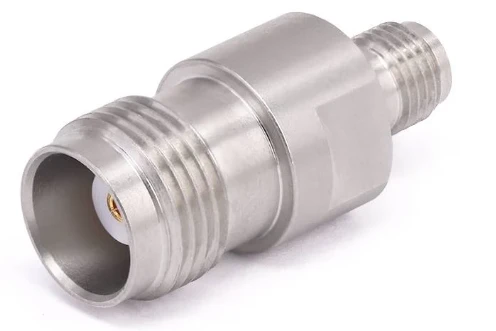

SMA go TNC RF Adapter |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
Fr 1- tnc/sma-jjs |
|
|
Dc -18 GHz |
1.25 |
Fireann tnc go fireann |
|
Fr 1- tnc/sma-kks |
|
|
Dc -18 GHz |
1.25 |
TNC Mná go SMA Mná |
|
Fr 1- tnc/sma-jks |
|
|
Dc -18 GHz |
1.25 |
Fireann tnc go smam baineann |
|
Fr 1- tnc/sma-kjs |
|
|
Dc -18 GHz |
1.25 |
TNC Mná a SMA Fireann |
|
Fr 1- tnc/sma-jj |
|
|
Dc -3 GHz |
1.25 |
Fireann tnc go fireann |
|
Fr 1- tnc/sm-kk |
|
|
Dc -3 GHz |
1.25 |
TNC Mná go SMA Mná |
|
Fr 1- tnc/sma-jk |
|
|
Dc -3 GHz |
1.25 |
Fireann tnc go smam baineann |
|
Fr 1- tnc/sma-kj |
|
|
Dc -3 GHz |
1.25 |
TNC Mná a SMA Fireann |
|

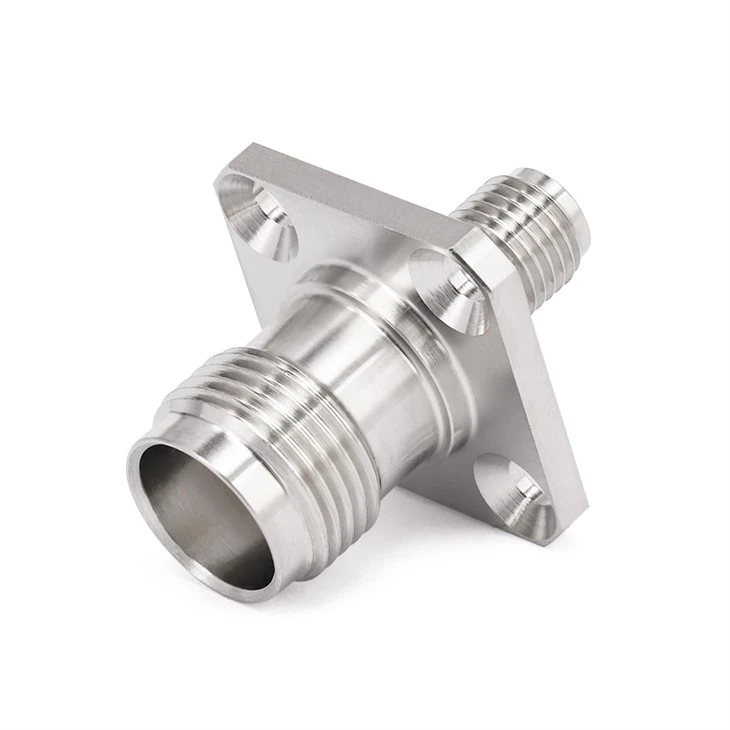

Fr 1- tnc/sm-kfk1 |
|
|
Dc -4 GHz |
1.25 |
TNC Mná go SMA baineann le flange 4 pholl |
|
SMA go BNC RF Adapter |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
Fr 1- bnc/sma-jjs |
|
|
Dc -18 GHz |
1.15 |
Fireann bnc go fireann |
|
Fr 1- bnc/sm-kks |
|
|
Dc -18 GHz |
1.15 |
Bnc baineann le SMA baineann |
|
Fr 1- bnc/sma-jks |
|
|
Dc -18 GHz |
1.15 |
Fireann bnc go smam baineann |
|
FR 1- BNC/SMA-KJS |
|
|
Dc -18 GHz |
1.15 |
Bnc baineann le fireann |
|
Cuibheoir RF SMA go GPPO (Mini-SMP) |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
FR 1- SMA/GPPO-JJ |
|
|
Dc -18 GHz |
1.20 |
Fireann fireann go gppo fireann |
|
FR 1- SMA/GPPO-KK |
|
|
Dc -18 GHz |
1.20 |
SMA Mná go Gppo baineann |
|
FR 1- SMA/GPPO-JK |
|
|
Dc -18 GHz |
1.20 |
Fireann fireann go gppo baineann |
|
FR 1- SMA/GPPO-KJ |
|
|
Dc -18 GHz |
1.20 |
SMA baineann go gppo fireann |
|
Cuibheoir RF SMA go GPO (SMP) |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
Fr 1- SMA/gpo-jj |
|
|
Dc -18 GHz |
1.20 |
Fireann fireann go gpo fireann |
|

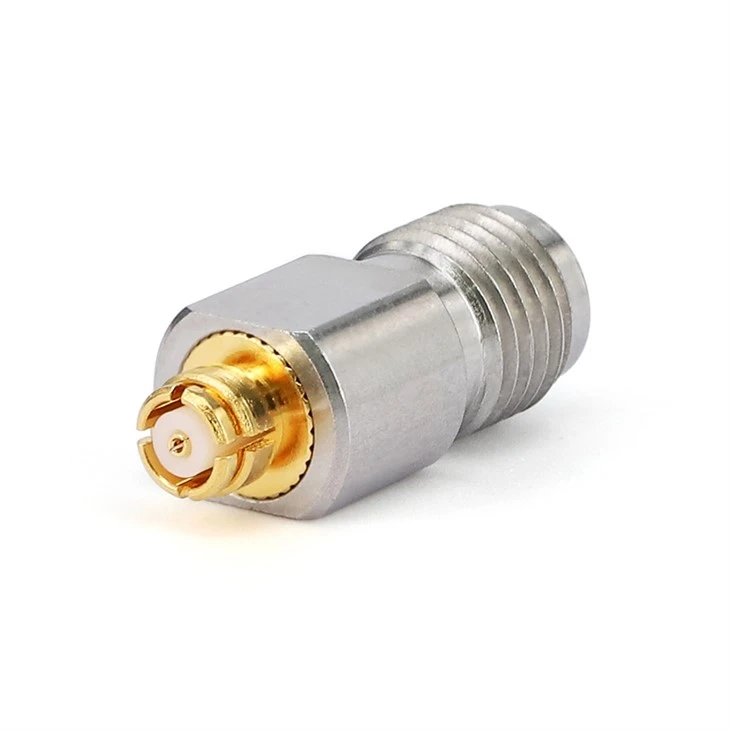

Fr 1- SMA/gpo-kk |
|
|
Dc -18 GHz |
1.20 |
SMA Mná go GPO Mná |
|
Fr 1- SMA/gpo-jk |
|
|
Dc -18 GHz |
1.20 |
Fireann fireann go bean gpo |
|
Fr 1- SMA/gpo-kj |
|
|
Dc -18 GHz |
1.20 |
SMA Mná go GPO Fireann |
|
SMA go cuibheoir RF SSMA |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
FR 1- SMA/SSMA-JJ |
|
|
Dc -27 GHz |
1.25 |
Fireann fireann go ssma fireann |
|
FR 1- SMA/SSMA-KK |
|
|
Dc -6 GHz |
1.25 |
SMA baineann go SSMA baineann |
|
FR 1- SMA/SSMA-JK |
|
|
Dc -18 GHz |
1.25 |
Fireann fireann go SSMA baineann |
|
FR 1- SMA/SSMA-KJ |
|
|
Dc -18 GHz |
1.25 |
SMA baineann le fireann ssma |
|
SMA go cuibheoir RF SSMC |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
FR 1- SMA/SSMC-JJ |
|
|
Dc -6 GHz |
1.20 |
Fireann fireann go fireann ssmc |
|
FR 1- SMA/SSMC-KK |
|
|
Dc -6 GHz |
1.20 |
SMA baineann go SSMC baineann |
|
FR 1- SMA/SSMC-JK |
|
|
Dc -6 GHz |
1.20 |
Fireann fireann go SSMC baineann |
|
FR 1- SMA/SSMC-KJ |
|
|
Dc -6 GHz |
1.20 |
SMA Mná go SSMC Fireann |
|

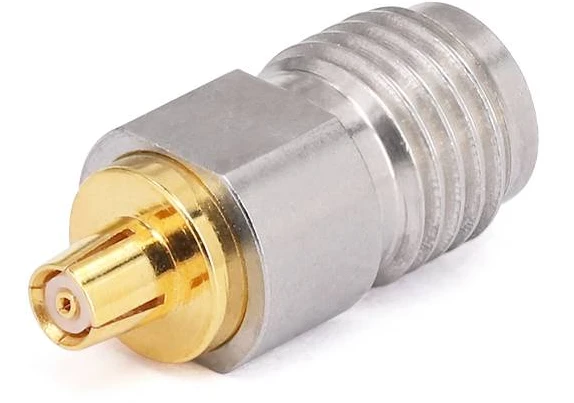

SMA go cuibheoir RF MCX |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
FR 1- SMA/MMCX-JJ |
|
|
Dc -6 GHz |
1.20 |
Fireann fireann go fireann mmcx |
|
Fr 1- SMA/mmcx-kk |
|
|
Dc -6 GHz |
1.20 |
SMA baineann go MMCX baineann |
|
FR 1- SMA/MMCX-JK |
|
|
Dc -6 GHz |
1.20 |
Fireann fireann go mmcx baineann |
|
FR 1- SMA/MMCX-KJ |
|
|
Dc -6 GHz |
1.20 |
SMA baineann go MMCX fireann |
|

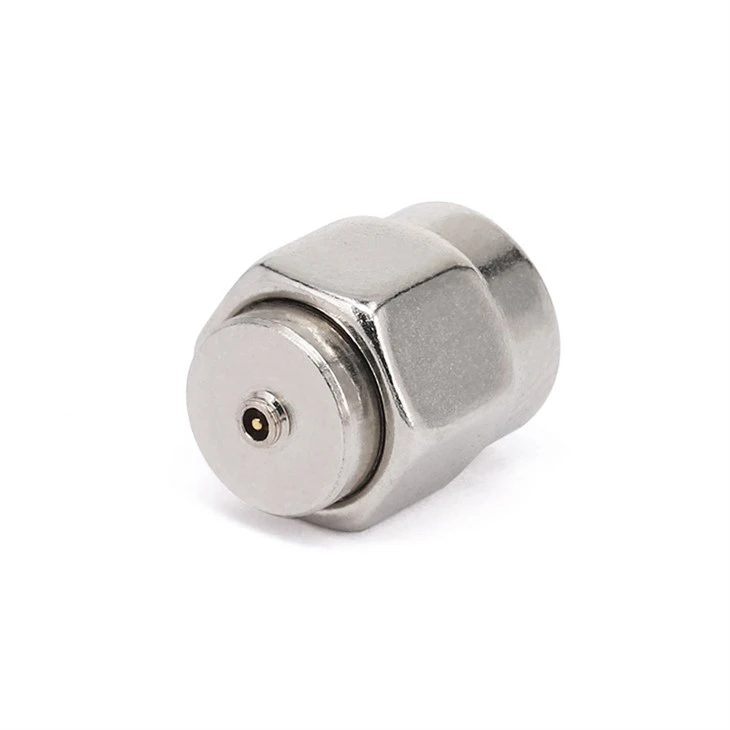

SMA go IPEX RF Adapter |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
FR 1- SMA/IPX 1- JJ |
|
|
Dc -6 GHz |
1.35 |
Fireann fireann go ipx1 fireann |
|
FR 1- SMA/IPX 1- kks |
|
|
Dc -6 GHz |
1.20 |
Fireann fireann go ipx1 baineann |
|

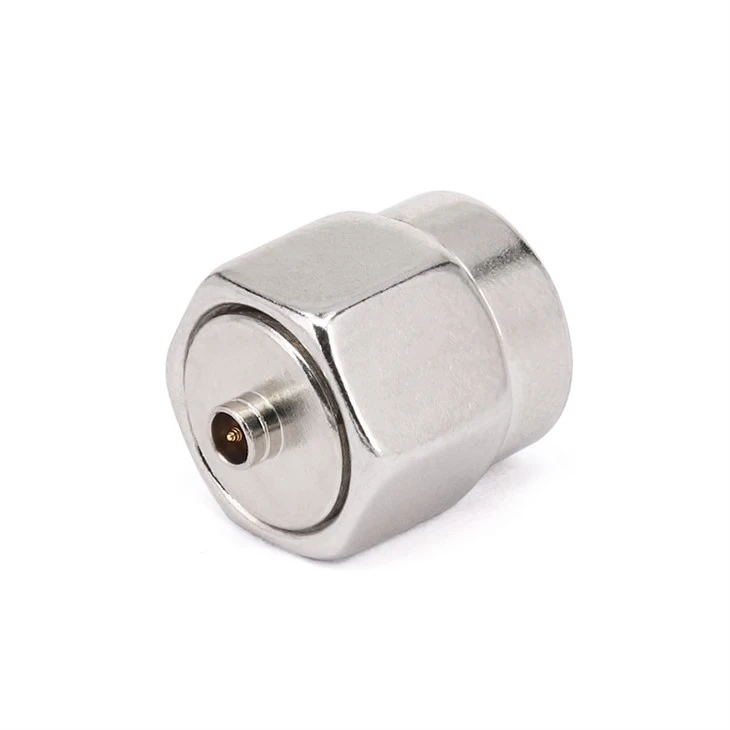

FR 1- SMA/IPX 4- JJ |
|
|
Dc -6 GHz |
1.35 |
Fireann fireann go ipx4 fireann |
