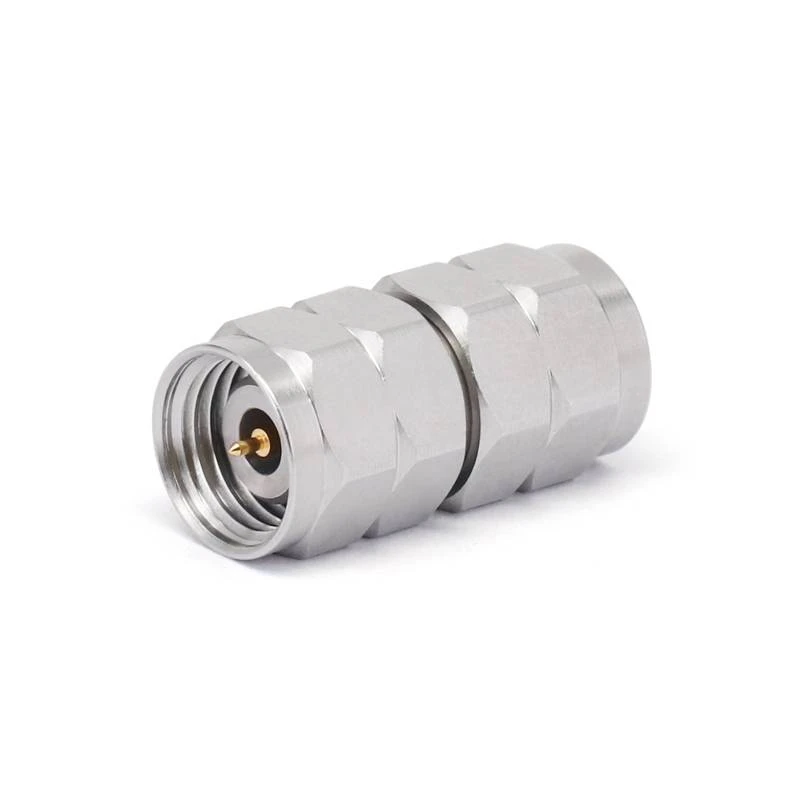

Cuibheoir 2.4mm
Is iondúil go mbíonn an raon minicíochta oibriúcháin den chuibheoir 2.4mm ó DC go 50GHz. Nuair a dhéantar an cuibheoir 2.4mm a chomhcheangal le calafoirt ar nós 2.92mm, 3.5mm, SMP (GPO) agus mion-SMP (GPPO) chun cuibheoir a dhéanamh, is féidir a raon minicíochta a chlúdach de ghnáth ó 33GHz go 50GHz. Mar shampla, comhcheanglaíonn an cuibheoir 2.4mm go 2.92mm saintréithe páirteach an dá chineál cónaisc, rud a chumasaíonn tarchur éifeachtach comharthaí agus tiontú laistigh den bhanda minicíochta seo.
Cur síos
Tabhairt isteach táirge
Is iondúil go mbíonn an raon minicíochta oibriúcháin den chuibheoir 2.4mm ó DC go 50GHz. Nuair a dhéantar an cuibheoir 2.4mm a chomhcheangal le calafoirt ar nós 2.92mm, 3.5mm, SMP (GPO) agus mion-SMP (GPPO) chun cuibheoir a dhéanamh, is féidir a raon minicíochta a chlúdach de ghnáth ó 33GHz go 50GHz. Mar shampla, comhcheanglaíonn an cuibheoir 2.4mm go 2.92mm saintréithe páirteach an dá chineál cónaisc, rud a chumasaíonn tarchur éifeachtach comharthaí agus tiontú laistigh den bhanda minicíochta seo.
Iarratais de nascóirí RF 1.85mm i réimsí éagsúla
Cumarsáid 5G: Éilíonn an líonra 5G luasanna tarchuir níos airde agus bandaleithead níos mó. Cuireann tréith an bhanda minicíochta leathan den chónascaire RF 2.4mm ar a chumas freastal ar riachtanais na n-iarratas cumarsáide agus tástála ardmhinicíochta éagsúla. Úsáidtear é go forleathan i réimsí amhail cumarsáid 5G, radar tonn-tonn, agus cumarsáid satailíte.
Ceisteanna Coitianta Soláthair
Sonraí sonraíochta táirgí
|
Cumraíocht |
|
|
Cónascaire 1 Cineál |
2.4mm |
|
Ceanglóir 1 bacainní |
50 óm |
|
Ceanglóir 1 Polaraíocht |
Caighdeánach |
|
Cineál cónascaire 2 |
1.85mm\/2.4mm\/GPPO\/GPO\/2.92mm\/3.5mm |
|
Ceanglóir 2 bacainní |
50 óm |
|
Ceanglóir 2 Polaraíocht |
Caighdeánach |
|
Modh Mount Ceanglóir |
Gan aon |
|
Stíl choirp adapter |
Uillinn dhíreach\/ar dheis\/flange mount\/4 pholl an bhulcáin |
|
Faisnéis faoi Ábhair |
|
|
Lár -theagmháil |
Ciúb Óir plátáilte |
|
Teagmháil sheachtrach |
Ciúb & cruach dhosmálta |
|
Tathag |
Cruach dhosmálta |
|
Tréleictreach |
Peoi |
|
Sonraí comhshaoil |
|
|
Fadteocht |
Céim {-55 go +165 Céim |
|
2011\/65\/AE (ROHS) |
Comhlíontach |
Cineál táirge
|

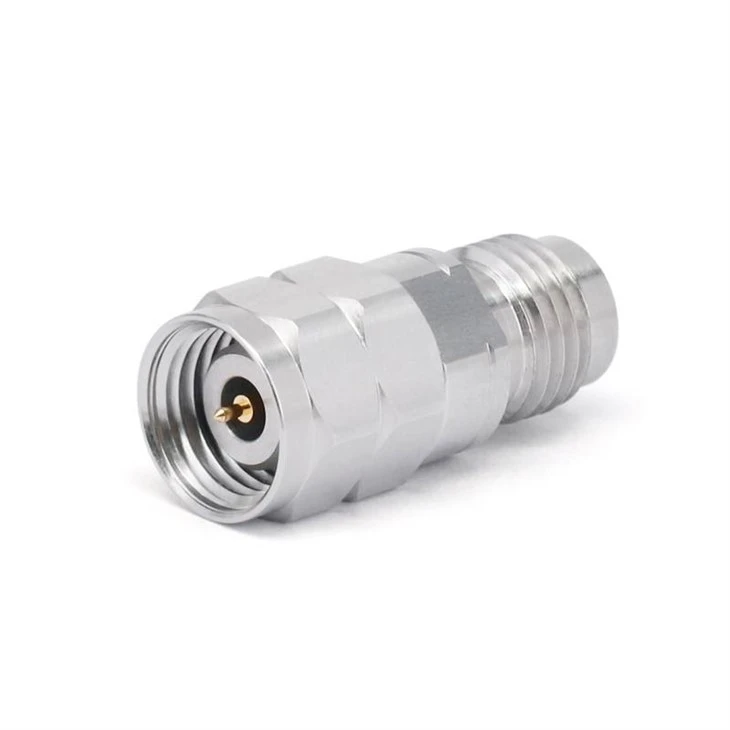

Cuibheoir RF 2.4mm |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
Fr 1-2. 4- jjs |
|
|
Dc -50 GHz |
1.15 |
Fireann 2.4mm go 2.4mm fireann |
|
Fr 1-2. 4- jks |
|
|
Dc -50 GHz |
1.20 |
Fireann 2.4mm go 2.4mm baineann |
|
Fr 1-2. 4- kks |
|
|
Dc -50 GHz |
1.15 |

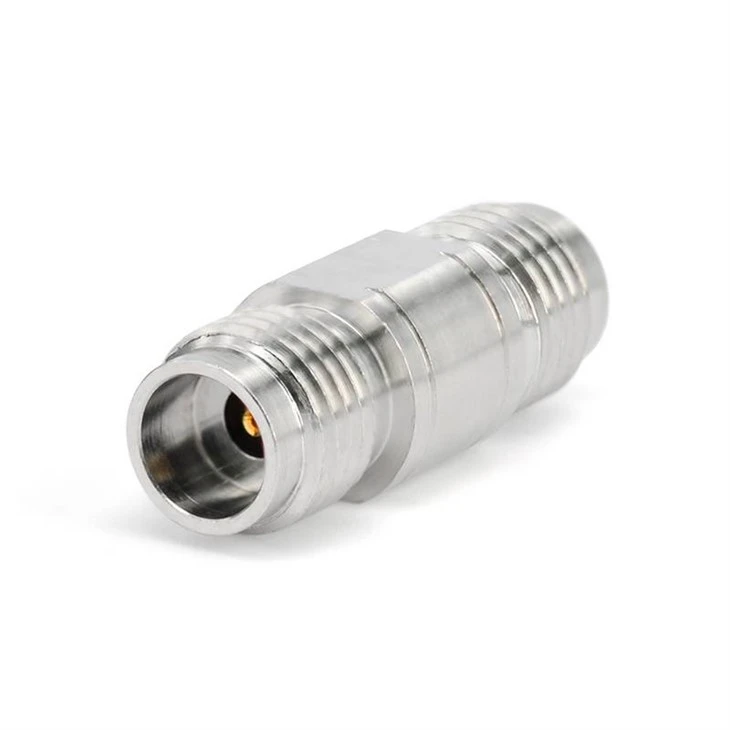

2.4mm baineann go 2.4mm baineann |
|
Fr 1-2. 4- kfkg |
|
|
Dc -50 GHz |
1.25 |

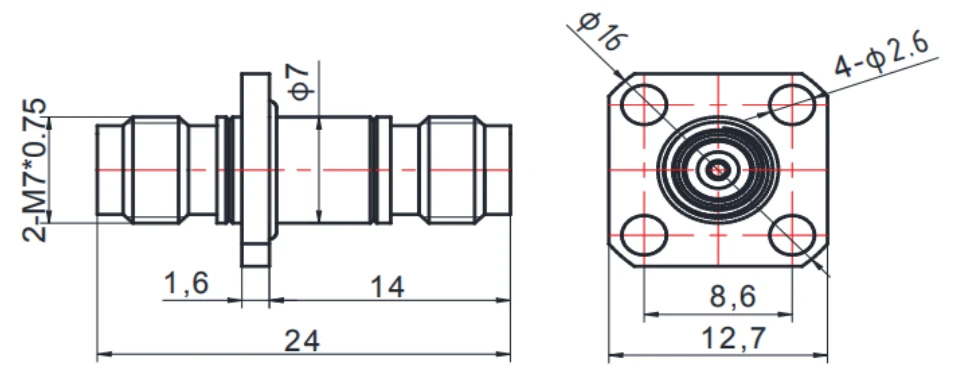

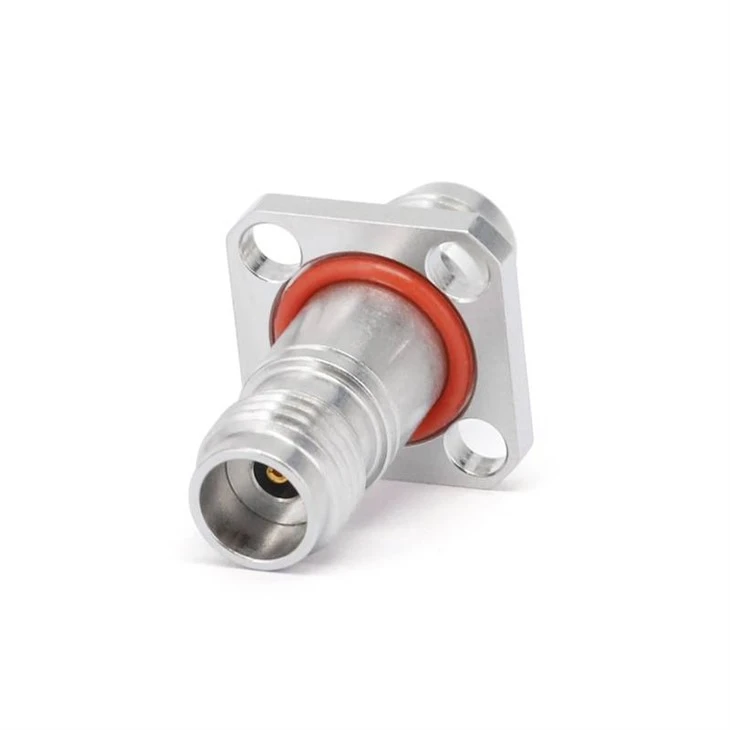

2.4mm baineann go 2.4mm baineann le flange 4 pholl |
|
Fr 1-2. 4- jwks |
|
|
Dc -50 GHz |
1.25 |

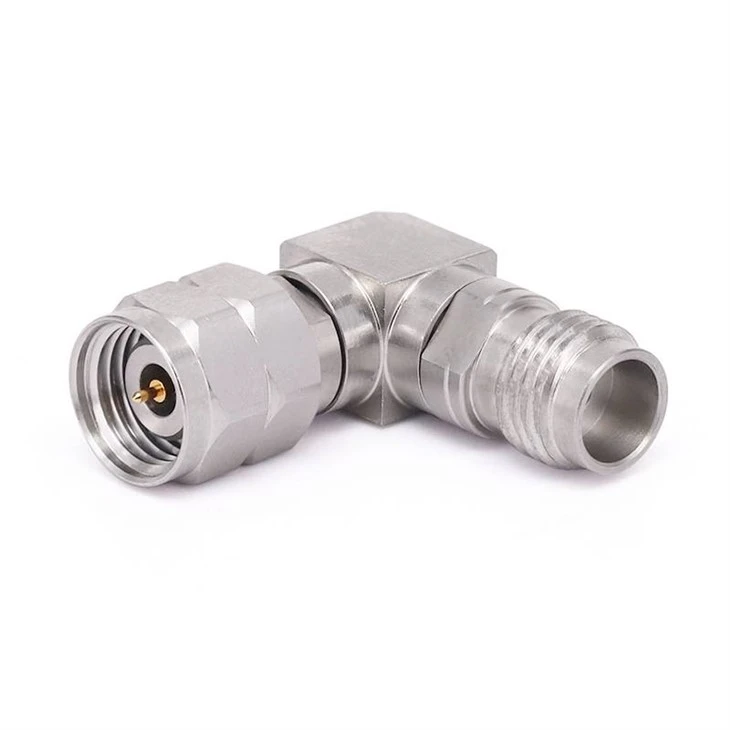

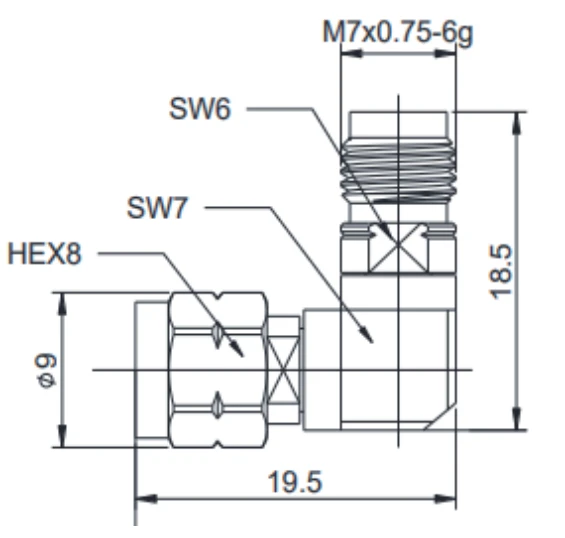

Fireann 2.4mm go 2.4mm baineann le huillinn cheart |
|
Fr 1-2. 4- kykg |
|
|
Dc -50 GHz |
1.25 |

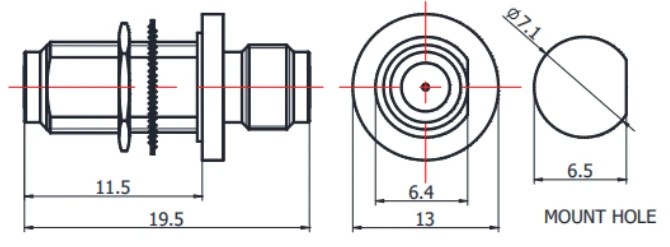

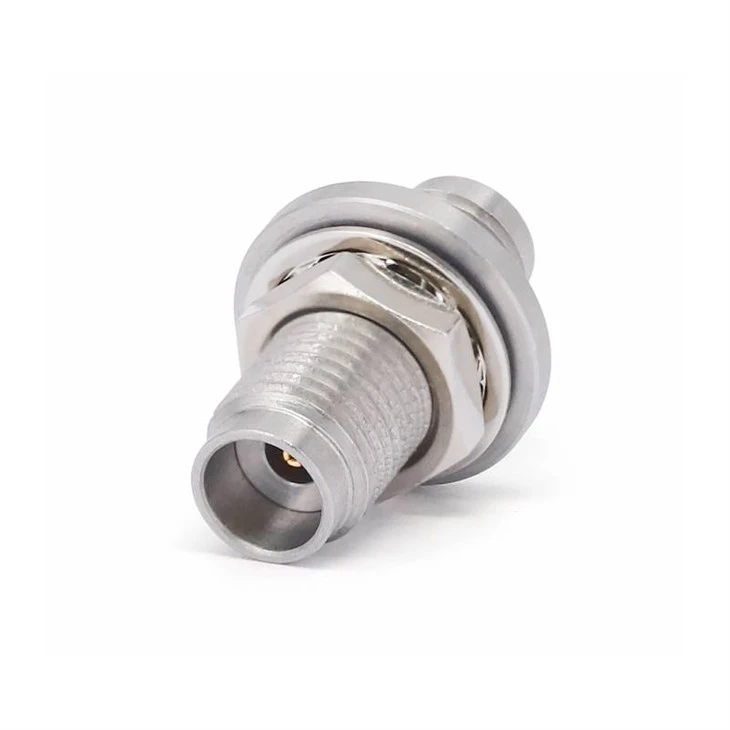

2.4mm baineann go 2.4mm baineann le mount bulkhead |
|

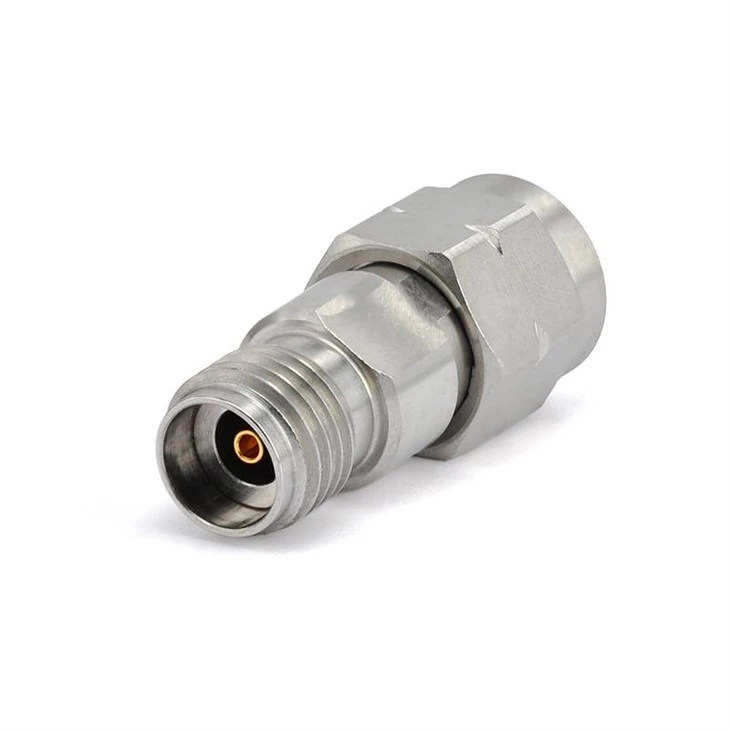

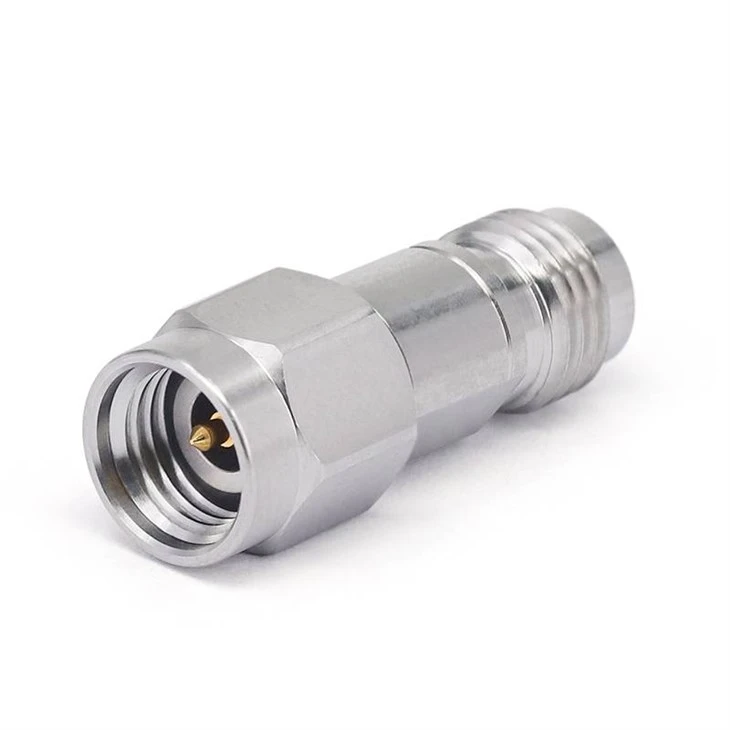

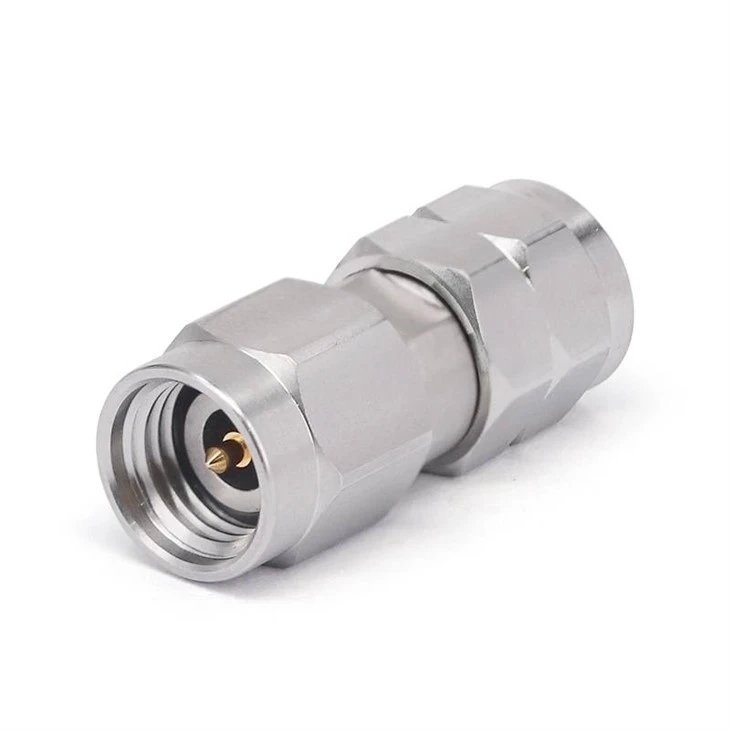

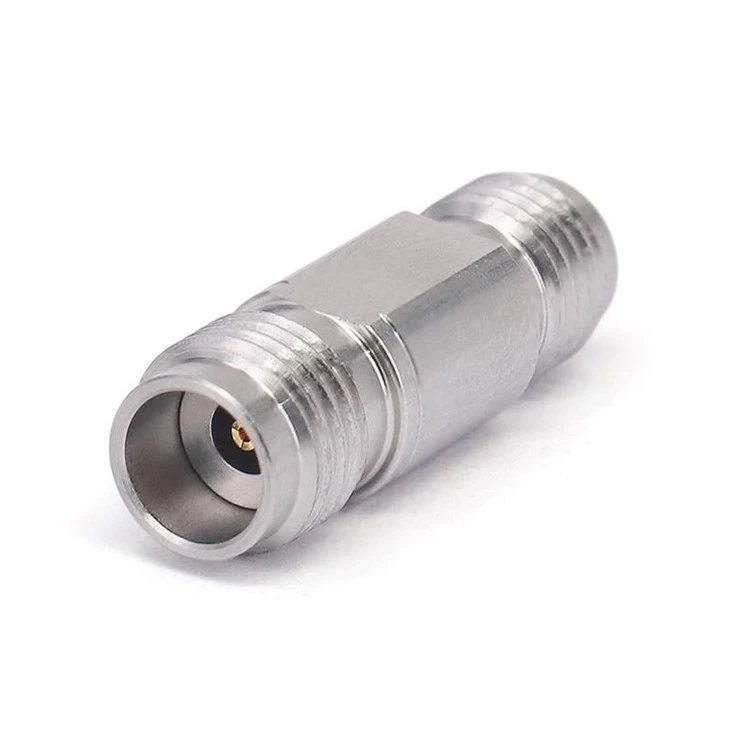

2.92mm go 2.4mm cuibheoir RF |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
Fr 1-2. 92\/2. 4- jjs |
|
|
Dc -40 GHz |
1.15 |
2.92mm fireann go 2.4mm fireann |
|
Fr 1-2. 92\/2. 4- kks |
|
|
Dc -40 GHz |
1.15 |
2.92mm baineann go 2.4mm baineann |
|
Fr 1-2. 92\/2. 4- jks |
|
|
Dc -40 GHz |
1.15 |
2.92mm fireann go 2.4mm baineann |
|
Fr 1-2. 92\/2. 4- kjs |
|
|
Dc -40 GHz |
1.15 |
2.92mm baineann go 2.4mm fireann |
|
Fr 1-2. 92\/2. 4- jwjs |
|
|
Dc -40 GHz |
1.15 |

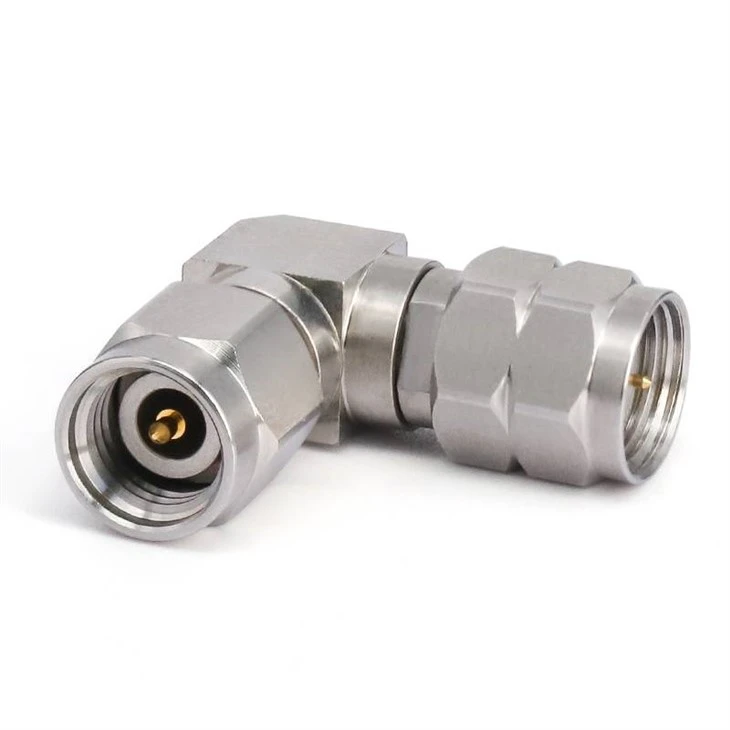

2.92mm fireann go 2.4mm fear le haingeal ceart |
|

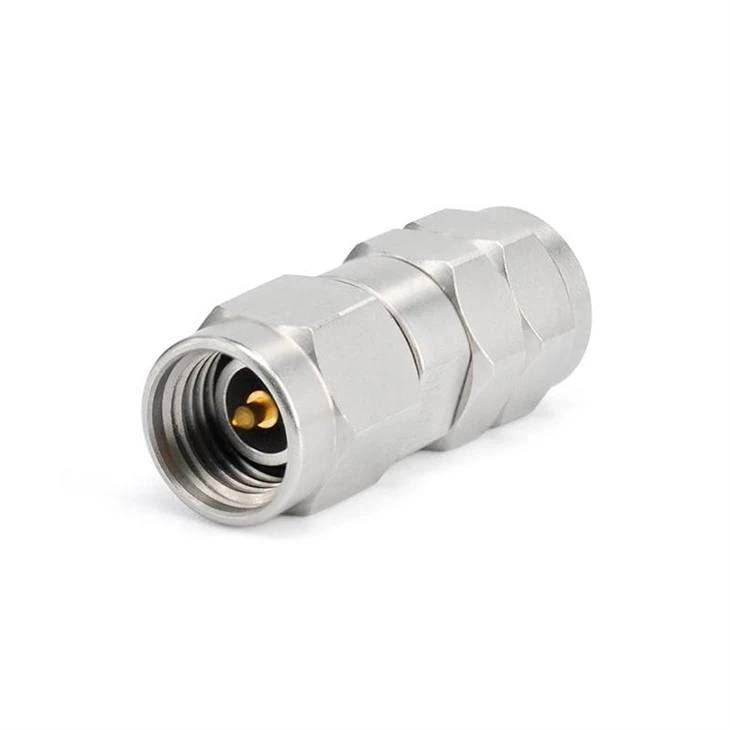

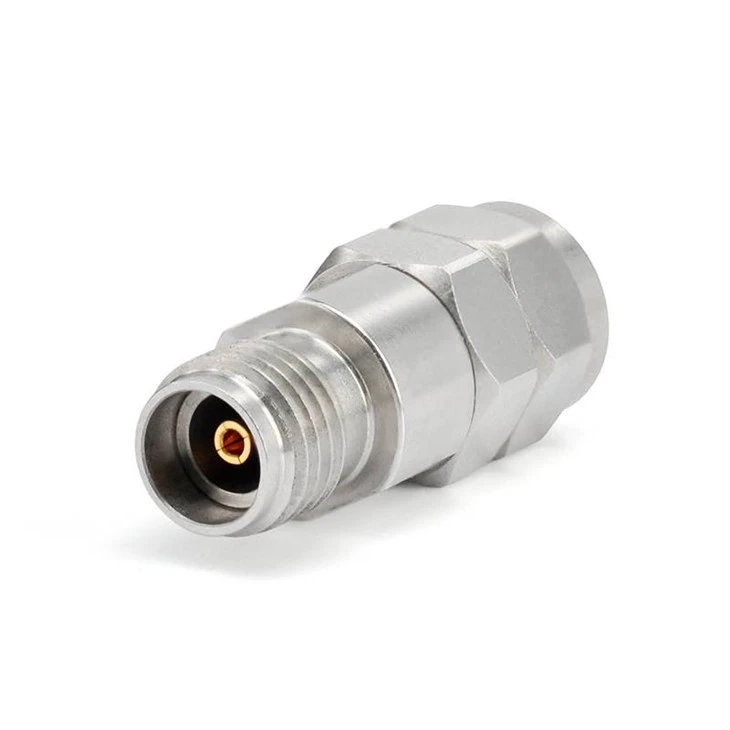

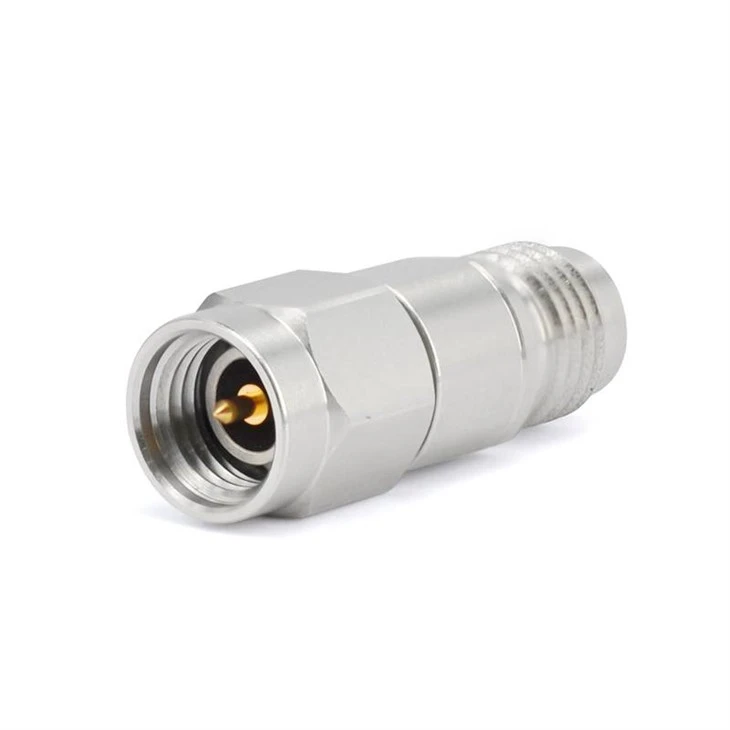

3.5mm go 2.4mmRF cuibheoir |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
Fr 1-3. 5\/2. {4- jjs |
|
|
Dc -33 GHz |
1.15 |
Fireann 3.5mm go 2.4mm fireann |
|
Fr 1-3. 5\/2. {4- kks |
|
|
Dc -33 GHz |
1.15 |
3.5mm baineann go 2.4mm baineann |
|
Fr 1-3. 5\/2. {4- jks |
|
|
Dc -33 GHz |
1.15 |

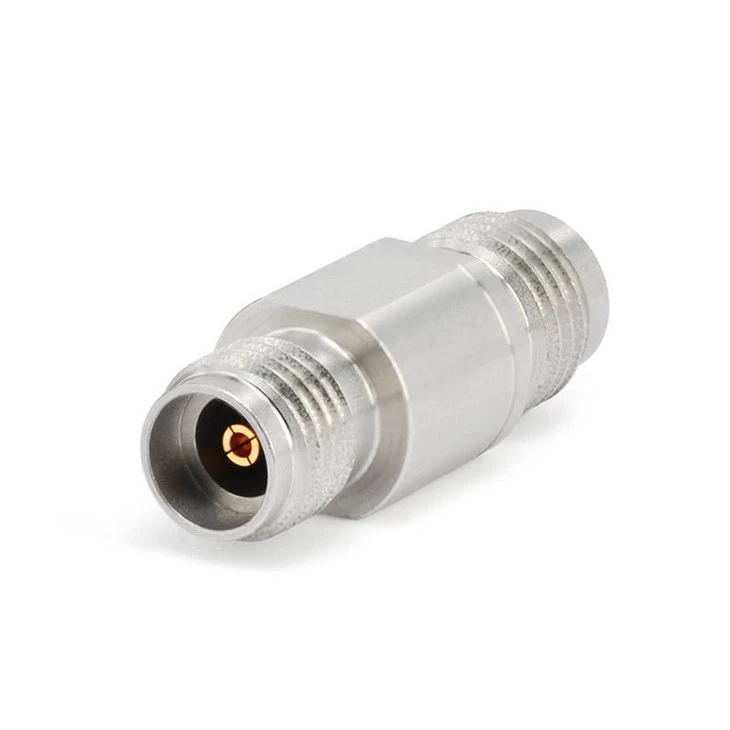

Fireann 3.5mm go 2.4mm baineann |
|
Fr 1-3. 5\/2. {4- kjs |
|
|
Dc -33 GHz |
1.15 |
3.5mm baineann go 2.4mm fireann |
|
1.85mm go cuibheoir RF 2.4mm |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
Fr 1-2. 4\/1. 85- jjs |
|
|
Dc -50 GHz |
1.25 |
Fireann 2.4mm go 1.85mm fireann |
|
Fr 1-2. 4\/1. 85- kks |
|
|
Dc -50 GHz |
1.25 |
2.4mm baineann go 1.85mm baineann |
|
Fr 1-2. 4\/1. {85- jks |
|
|
Dc -50 GHz |
1.25 |
Fireann 2.4mm go 1.85mm baineann |
|
Fr 1-2. 4\/1. {85- kjs |
|
|
Dc -50 GHz |
1.25 |
2.4mm baineann go 1.85mm fireann |
|

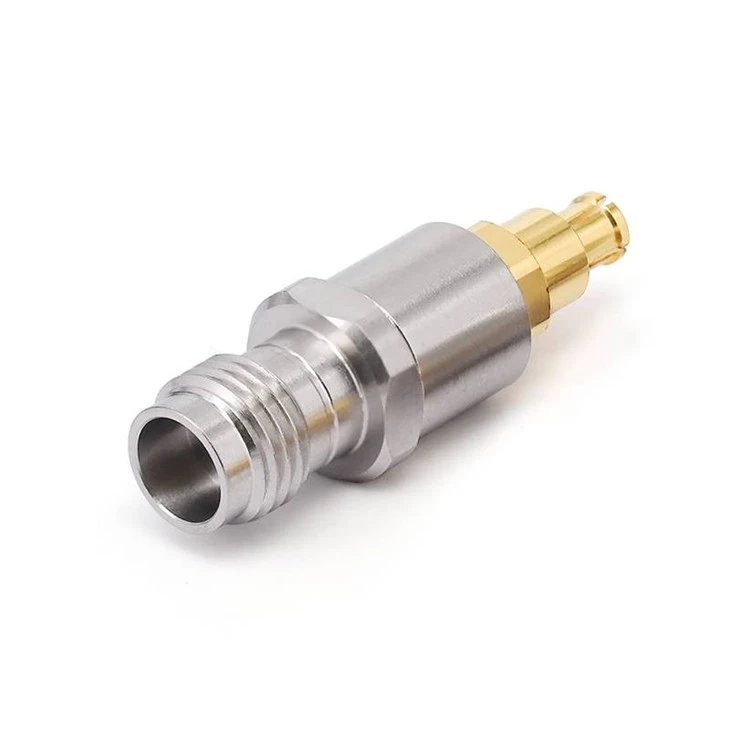

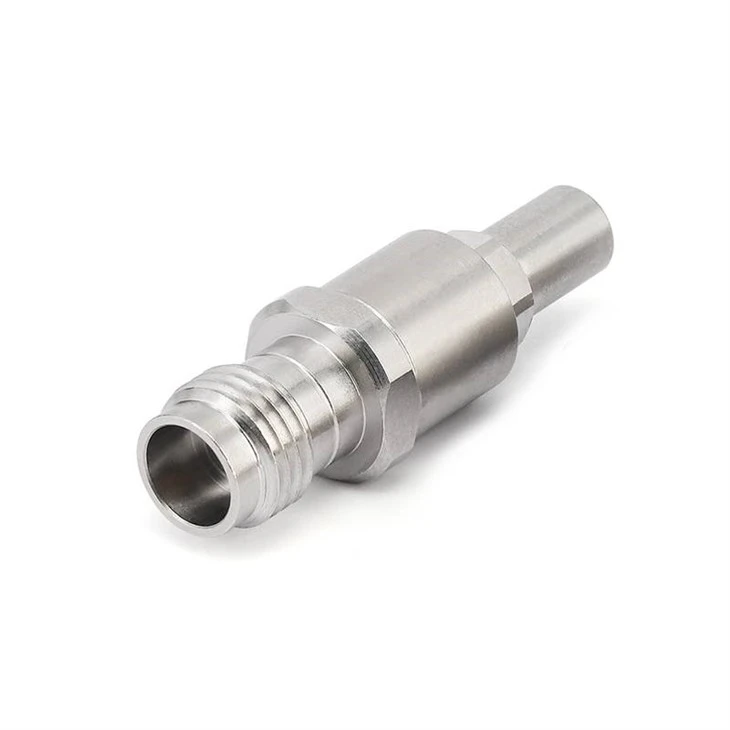

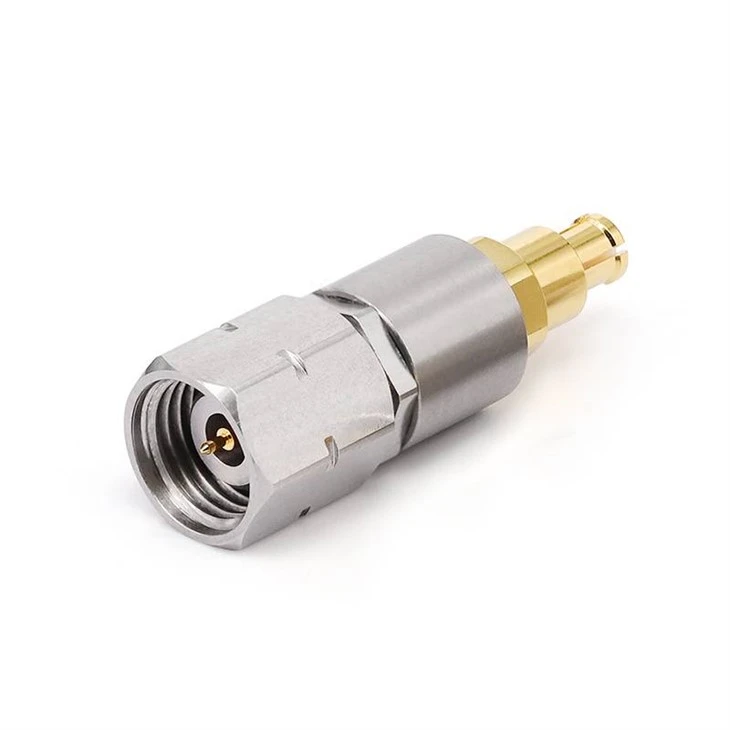

2.4mm go GPO (SMP) Cuibheoir RF |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
Fr 1-2. 4\/gpo-jj |
|
|
Dc -40 GHz |
1.25 |
Fireann 2.4mm fireann go GPO (SMP) |
|
Fr 1-2. 4\/gpo-kk |
|
|
Dc -40 GHz |
1.25 |
2.4mm baineann go GPO (SMP) baineann |
|
Fr 1-2. 4\/gpo-jk |
|
|
Dc -40 GHz |
1.25 |
Fireann 2.4mm go GPO (SMP) Mná |
|
Fr 1-2. 4\/gpo-kj |
|
|
Dc -40 GHz |
1.25 |
2.4mm baineann go GPO (SMP) Fireann |
|

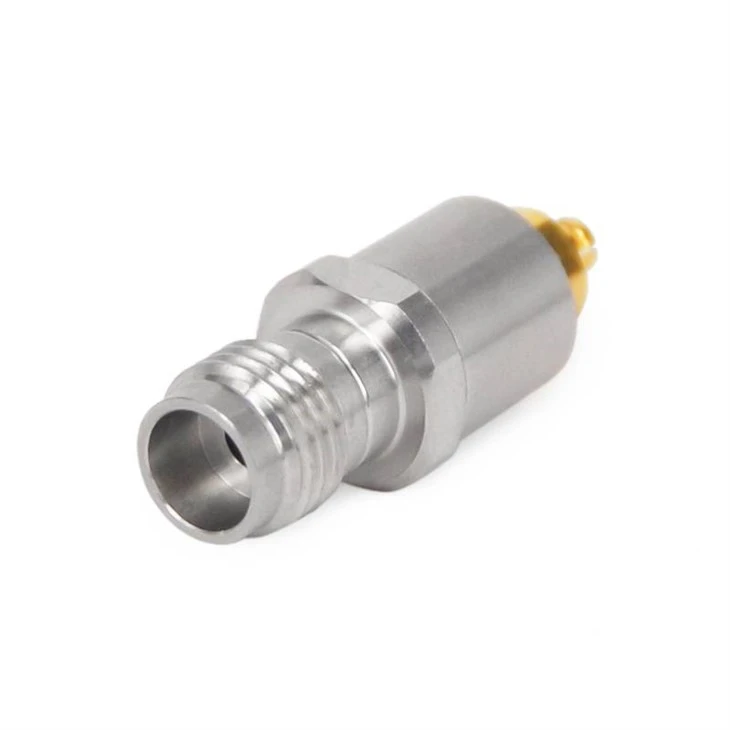

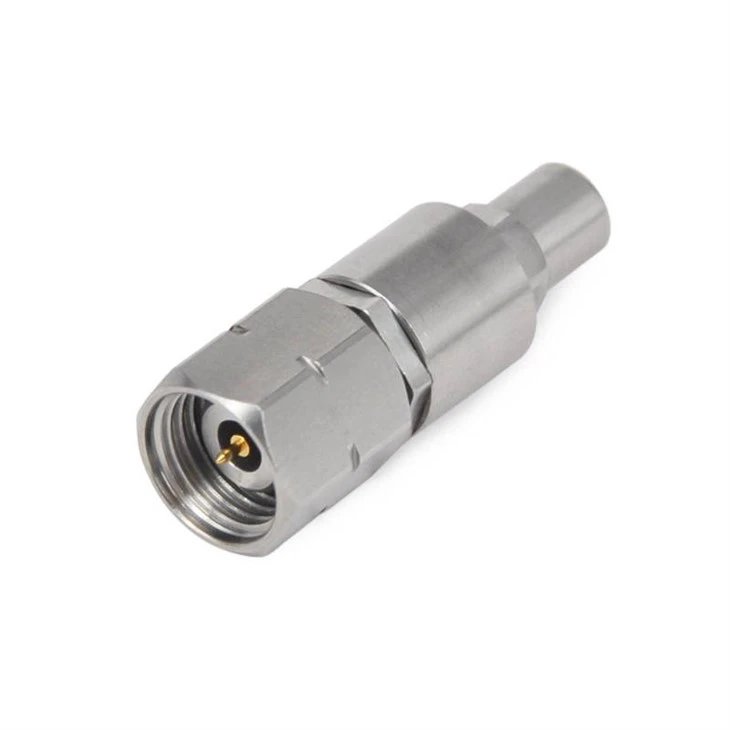

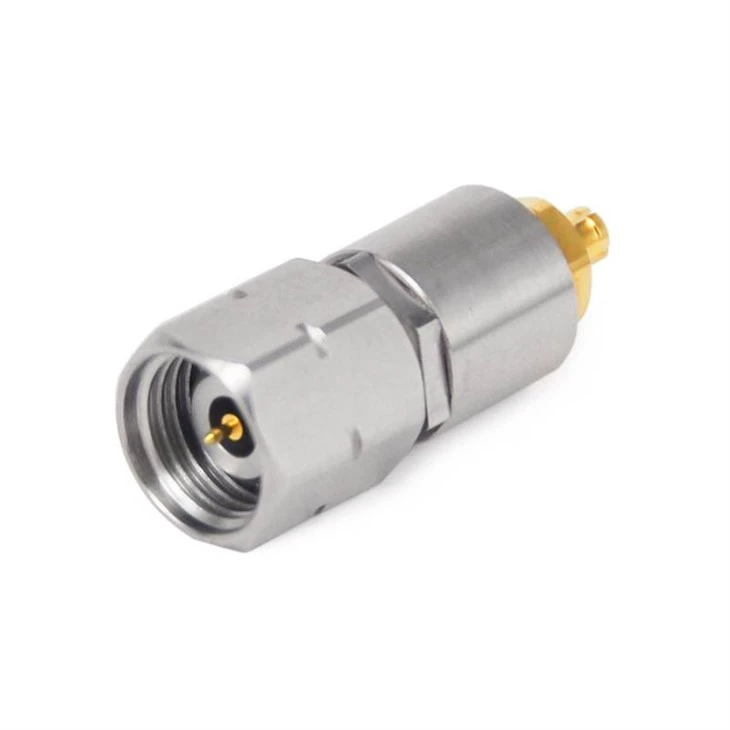

2.4mm go GPPO (Mini SMP) Cuibheoir RF |
|||||
|
Scrúch |
Léaráid |
Minicíocht |
VSWR |
Tuairisc Cur síos |
|
|
Fr 1-2. 4\/gppo-jj |
|
|
Dc -40 GHz |
1.25 |
Fireann 2.4mm fireann go GPPO (mion-SMP) |
|
Fr 1-2. 4\/gppo-kk |
|
|
Dc -40 GHz |
1.25 |
2.4mm baineann go GPPO (Mini-SMP) baineann |
|
Fr 1-2. 4\/gppo-jk |
|
|
Dc -40 GHz |
1.25 |
Fireann 2.4mm go GPPO (mion-SMP) baineann |
|
Fr 1-2. 4\/gppo-kj |
|
|
Dc -40 GHz |
1.25 |
2.4mm baineann go GPPO (mion-SMP) fireann |
